Cardio Plus 3 Channel ECG Machine Price in Bangladesh
Original price was: ৳ 45000.00.৳ 41900.00Current price is: ৳ 41900.00.
Buy the Cardio Plus iE-3A ECG Machine in Bangladesh. Explore three-channel recording, clinical uses, buying guidance, and supply from Aleef Surgical now.

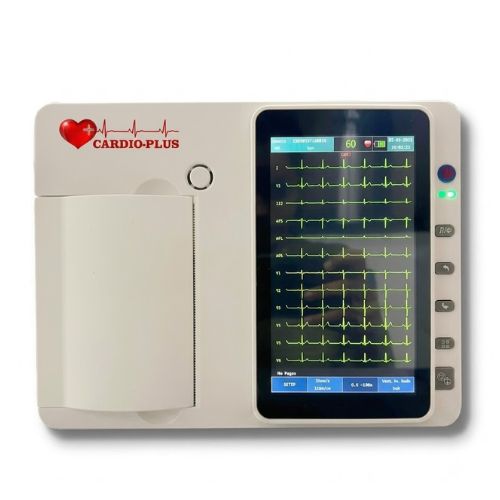

The Cardio Plus iE-3A ECG Machine is a three-channel electrocardiograph designed for routine cardiac examinations in hospitals, clinics, diagnostic centres and medical chambers. Manufactured in China, this compact ECG unit helps healthcare professionals record and review the electrical activity of a patient’s heart during clinical assessment.
Request the Cardio Plus iE-3A price, warranty details, and complete technical specifications from Aleef Surgical. Contact us for retail orders, wholesale supply, institutional quotations, and nationwide delivery across Bangladesh.
Its practical design makes it suitable for facilities that need regular ECG testing without requiring a large workstation. Depending on the supplied configuration, the machine may include automated recording functions, waveform filtering, patient information entry, thermal printing and rechargeable battery operation. Buyers should confirm the final technical configuration before placing an order.
Key Features
- Three-channel ECG waveform recording
- Suitable for routine resting ECG examinations
- Compact design for clinical and diagnostic use
- Integrated report-printing workflow
- Supports organised review of cardiac waveforms
- Suitable for hospitals, clinics and medical chambers
- Designed for use by trained healthcare professionals
- Manufactured in China
- Final functions may vary by supplied configuration
12-Lead ECG Machine Technical Specifications
| Specification Item | Technical Details |
| Lead Setup | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Input Circuit | Floating; Protection circuit against Defibrillator effect |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | <0.05µA |
| Record Mode | Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHX2 Manual: 3CH, 2CH, 3CH+1R, 2CH+1R Rhythm: Any lead selectable |
| Filter Settings | EMG Filter: 25 Hz / 30 Hz / 40 Hz / 75 Hz / 100 Hz / 150 Hz DFT Filter: 0.05 Hz / 0.15 Hz AC Filter: 50 Hz / 60 Hz |
| CMRR | >100dB |
| Patient Leak Current | <10µA (220V to 240V) |
| Frequency Response | 0.05Hz to 150Hz (-3dB) |
| Sensitivity | 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error: ±5%) |
| Anti-baseline Drift | Automatic |
| Time Constant | ≥3.2s |
| Noise Level | <15µVp-p |
| Paper Speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Recording Mode | Thermal printing system |
| Paper Specification | Roll 80mm x 20M |
| Safety Standard | IEC I/CF |
| Sample Rate | Normal: 1000 sps/channel |
| Power Supply | AC: 100 to 240V, 50/60Hz, 30VA to 100VA DC: 14.8V/2200mAh, built-in lithium battery |
Include Package Cardio Plus iE-3A ECG Machine
