Lee Medical 6 Channel ECG Machine Price in Bangladesh
Original price was: ৳ 65000.00.৳ 57900.00Current price is: ৳ 57900.00.
Buy the Lee Medical 601 Six Channel ECG Machine in Bangladesh from Aleef Surgical. Features a 7-inch touch display, auto interpretation, arrhythmia analysis, digital filters and rechargeable battery.

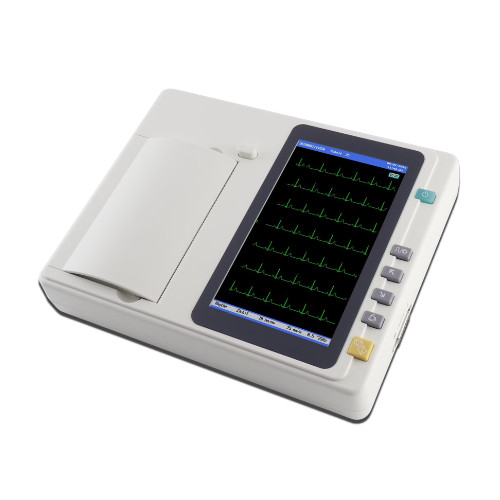

Lee Medical 601 Six Channel ECG Auto Report Machine in Bangladesh
The Lee Medical 601 Six Channel ECG Machine is a modern digital electrocardiograph designed for hospitals, diagnostic centres, clinics and cardiac care facilities. It combines simultaneous ECG acquisition, automatic measurement and interpretation with a clear 7-inch colour touchscreen LCD display, helping medical professionals perform routine cardiac examinations efficiently.
This machine supports Lee Medical 601 Six Channel ECG Machine and provides six-channel ECG recording with a selectable rhythm lead. Its multiple operating modes, including Manual and Auto modes, allow healthcare professionals to choose the appropriate recording method according to the patient’s condition and clinical requirements.
Aleef Surgical supplies medical and diagnostic equipment for hospitals, clinics and healthcare professionals across Bangladesh. Customers can contact the team for product availability, technical information, accessories, delivery support and after-sales service.
To learn more about the Lee Medical 601 Six Channel Digital ECG Machine price in Bangladesh, contact Aleef Surgical before ordering.
Advanced Lee Medical 601 Six Channel ECG Machine and Interpretation
The Lee Medical 601 includes an automatic ECG measurement and interpretation function that assists qualified healthcare professionals in reviewing cardiac activity. Its built-in arrhythmia analysis mode helps identify abnormal heart rhythms during ECG examination.
Lee Medical 601 Six Channel ECG Machine also uses digital filtering technology to reduce unwanted interference. The EMG filter, AC filter and baseline drift filter help produce cleaner and more stable ECG waveforms for clinical review. Final ECG findings should always be assessed and confirmed by a trained physician or cardiology professional.
Key Features of the Advanced ECG Machine
Discover the unique characteristics that make this digital electrocardiograph an ideal diagnostic tool for modern healthcare facilities.
| Feature Description |
| 7-inch high resolution color touch screen for intuitive operation and clear data visualization. |
| 12-lead simultaneous acquisition and display allows for comprehensive cardiac monitoring. |
| ECG automatic measurement and interpretation function assists clinicians with preliminary diagnosis. |
| Complete digital filters provide superior signal quality, resisting baseline drift, AC interference, and EMG interference. |
| Compact and lightweight design makes it ideal for mobile use and small clinical spaces. |
| Support for USB flash disks and micro SD cards to easily extend storage memory for patient records. |
| Simple software upgrades are possible via USB or SD card to keep the device up-to-date. |
| Built-in rechargeable Li-ion battery ensures continuous operation during power cuts and patient transport. |
Technical Specifications
The following table details the technical parameters of the 12-lead electrocardiograph, illustrating its precision, speed, and safety standards.
| Technical Parameter | Detailed Specification |
| Leads | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Input Circuit | Floating; Protection circuit against Defibrillator effect |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | <0.05µA |
| Record Modes | Automatic: 3CHx4+1R, 3CHx4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHx2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. |
| Filter Setting | EMG Filter: 25 Hz / 30 Hz / 40 Hz / 75 Hz / 100 Hz / 150 Hz DFT Filter: 0.05 Hz / 0.15 Hz AC Filter: 50 Hz / 60 Hz |
| CMRR (Common Mode Rejection) | >100dB |
| Patient Leak Current | <10µA (220V-240V) |
| Frequency Response | 0.05Hz – 150Hz (-3dB) |
| Sensitivity | 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error: ±5%) |
| Anti-baseline Drift | Automatic |
| Time Constant | ≥3.2s |
| Noise Level | <15µVp-p |
| Paper Speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Recording Mode | Thermal printing system |
| Paper Specification | Roll 110mm x 20M |
| Safety Standard | IEC Class I, Type CF applied parts (I/CF) |
| Sample Rate | Normal: 1000 sps/channel |
| Power Supply | AC: 100-240V, 50/60Hz, 30VA-100VA DC: 14.8V/2200mAh, built-in lithium battery |
