Creative Medical K12 Patient Monitor in Bangladesh
Original price was: ৳ 145000.00.৳ 125000.00Current price is: ৳ 125000.00.
Buy the Creative Medical K12 Patient Monitor from Aleef Surgical. Explore verified features, clinical applications, RFQ support and nationwide delivery

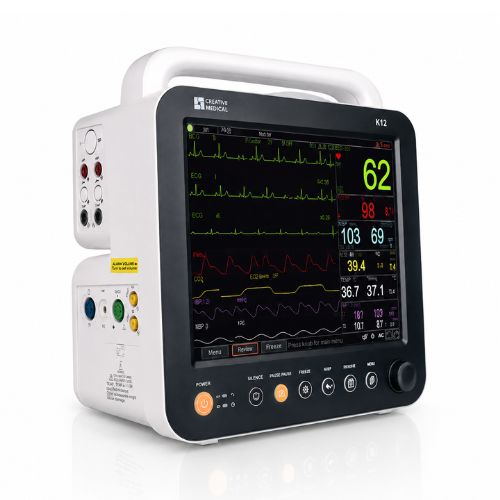

Creative Medical K12 Patient Monitor
The Creative Medical K12 Patient Monitor is a bedside multiparameter monitoring system designed to help qualified healthcare professionals view and record essential physiological data in real time. Its 12.1-inch high-resolution LED-backlit display shows nine waveform traces and can support up to 13 waveforms, depending on configuration. The clear screen, rotary control and optional touchscreen make routine observation practical in busy clinical settings.
Standard monitoring functions include ECG and heart rate, SpOâ‚‚ and pulse rate, non-invasive blood pressure (NIBP), respiration rate and body temperature. EtCOâ‚‚, invasive blood pressure and 12-lead ECG capabilities may vary by ordered configuration. An integrated three-channel thermal recorder provides a convenient way to document selected waveforms and readings. This configurable design lets institutions select functions appropriate to their workflow
Need the correct K12 configuration for your hospital or clinic? Contact Aleef Surgical for current pricing, accessory details, wholesale supply and an institutional quotation with nationwide delivery.
Creative Medical K12 Patient Monitor Benefit
A 360-degree visible indicator and three-level audible and visual alarm system help staff recognize parameter changes. The built-in lithium-ion battery supports up to four hours of continuous monitoring under manufacturer test conditions; actual runtime depends on battery health, screen brightness, connected modules and use. Data export, software upgrades, bed-to-bed viewing and HL7-based connectivity can support documentation and central-monitoring workflows when enabled.
The K12 is suitable for hospital wards, emergency departments, operating rooms, ICU, CCU and other supervised clinical areas. The FDA 510(k) summary describes the K-series for adult and pediatric patients and states that operation should be performed by qualified professionals. Buyers should confirm the intended patient category, accessories and optional modules of the supplied unit, together with applicable local regulatory requirements
Key Features
- 12.1-inch high-resolution LED-backlit display
- Nine on-screen traces with support for up to 13 waveforms
- Standard ECG, HR, SpOâ‚‚, PR, NIBP, RESP and TEMP monitoring
- Optional touchscreen and advanced parameter configurations
- Three-level audible and visual alarm system
- 360-degree visible alarm indicator
- Integrated three-channel thermal recorder
- Built-in rechargeable lithium-ion battery
- Data export and software-upgrade support
- HL7 connectivity and bed-to-bed viewing where configured
Technical Specification
| Category | Parameter | Specification |
| System & Hardware | Software Languages | Internal: GB, DE, FR, PT, ES, IT, PL, TR, RU PC Software: GB only |
| Alarms & Display | 12-inch TFT display, 360° visible indicator, 3-level audible/visible alarm | |
| Power Supply | AC 100-240 V, 50/60 Hz, 60 VA | |
| Battery | Built-in Lithium (11.1V/4400 mAh), up to 3 hours continuous monitoring | |
| Connectivity & Safety | Ethernet networking, IEC 60601-1 safety standard | |
| ECG | Input & Impedance | Dynamic range: ±(0.5~5 mVp) Differential input impedance: ≥10 mO |
| Bandwidth | Diagnostic: 0.05~150 Hz Monitoring: 0.5~40 Hz Operation: 1~20 Hz |
|
| CMRR | Diagnostic: ≥90 dB Monitoring & Operation: ≥105 dB |
|
| Settings | Sensitivity: ×1/4, ×1/2, ×1, ×2, ×4, Auto Sweeping speed: 6.25, 12.5, 25, 50 mm/s |
|
| Heart Rate (HR) | Range: 15~350 bpm (Accuracy: ±1% or ±2 bpm, whichever is greater) | |
| Additional Features | Pacemaker pulse detection and rejection function | |
| Respiration (RESP) | Measurement | Range: 0~120 rpm (Accuracy: ±5% or ±2 rpm, whichever is greater) |
| Temperature (TEMP) | Measurement | Range: 21.0~50.0 °C (Accuracy: ±0.2 °C from 25~45 °C) |
| NIBP | Technique & Time | Oscillometric method, <30 seconds typical measurement time (adult cuff) |
| Measuring Modes | Manual, Auto, Stat, Multi-cycle. Auto intervals: 1-480 min. | |
| Systolic (SYS) Range | Adult: 40~275 mmHg Pediatric: 40~200 mmHg Neonate: 40~135 mmHg |
|
| Diastolic (DIA) Range |
Adult: 10~210 mmHg |
|
| Mean (MAP) Range | Adult: 20~230 mmHg Pediatric: 20~165 mmHg Neonate: 20~110 mmHg |
|
| Accuracy | Mean difference: ±5 mmHg. Standard deviation: 8 mmHg. | |
| SpO2 | Technique | Dual-wavelength optical method |
| Measurement | Range: 0%~100% (Accuracy: ±2% for 70~100%). Low perfusion: as low as 0.3%. | |
| Pulse Rate (PR) | Range: 30~250 bpm (Accuracy: ±2 bpm or ±2%, whichever is greater) | |
| CO2 | Technique & Mode | Infrared optical method. Sidestream or mainstream sampling. |
| Measurement & Flow | Range: 0~150 mmHg. Flow rate: 50 ml/min ±10 ml/min (Sidestream). | |
| Accuracy | 0~40 mmHg: ±2 mmHg 41~70 mmHg: ±5% of reading 71~100 mmHg: ±8% of reading 101~150 mmHg: ±10% of reading |
Creative Medical Patient Monitor Price in Bangladesh
| Category | Details |
| Product Name | Patient Monitor |
| Brand | Creative Medical |
| Model | K12 |
| Product SKU | ASL2001973 |
| Display | 12.1″ High-Resolution Screen (Touch Screen Optional) |
| Monitoring Parameters | ECG, SpO2, NIBP, Respiration (RESP), Temperature (TEMP), and Pulse Rate (PR) |
| Key Features | 3-level visual and audible alarms, built-in rechargeable Lithium battery |
| Best Price | ৳ 125,000 |
| Supplier | Aleef Surgical |
| Showroom Location | Purobi Super Market, Main Road, Mirpur-11, Pallabi, Dhaka-1216 |
